Teraflex

Teraflex 4444400 231 Extreme Short Shaft Kit for NV231-J Transfer Cases

Name: Teraflex 4444400 231 Extreme Short Shaft Kit for NV231-J Transfer Cases
Brand: Teraflex
SKU: 52237-900
Price: 568.98 AUD
Availability: InStock

$568.98

AUD incl. GSTIn stock — ready to dispatch

SKU: 52237-900Part no.: 4444400Condition: NewSold by Summit Jeep Parts, Millers Point NSW

Fits: 2001 Cherokee (XJ); 2000 Cherokee (XJ); 1999 Cherokee (XJ); 1998 Cherokee (XJ); 1997 Cherokee (XJ); 1996 Cherokee (XJ); 1995 Cherokee (XJ); 1994 Cherokee (XJ); 1993 Cherokee (XJ); 1992 Cherokee (XJ); 1991 Cherokee (XJ); 1990 Cherokee (XJ); 1989 Cherokee (XJ); 1988 Cherokee (XJ); 1987 Cherokee (XJ); 1986 Cherokee (XJ); 1985 Cherokee (XJ); 1984 Cherokee (XJ); 2006 Wrangler (TJ); 2005 Wrangler (TJ); 2004 Wrangler (TJ); 2003 Wrangler (TJ); 2002 Wrangler (TJ); 2001 Wrangler (TJ); 2000 Wrangler (TJ); 1999 Wrangler (TJ); 1998 Wrangler (TJ); 1997 Wrangler (TJ); 1995 Wrangler (YJ); 1994 Wrangler (YJ); 1993 Wrangler (YJ); 1992 Wrangler (YJ); 1991 Wrangler (YJ); 1990 Wrangler (YJ); 1989 Wrangler (YJ); 1988 Wrangler (YJ); 1987 Wrangler (YJ); 2006 Wrangler Unlimited (LJ); 2005 Wrangler Unlimited (LJ); 2004 Wrangler Unlimited (LJ)

Enquiry

Buying from Summit Jeep Parts

Shipping from AUD $19.95, free over AUD $10,000 — shipping & delivery
Change of mind and faulty-part options — returns & refunds
Fitment and warranty cover — warranty & fitment policy
Card and Australian bank transfer — payment methods · GST & tax invoices

Questions on this part? Call +61 480 804 232 or email orders@summitjeepparts.com. Summit Jeep Parts, 1 Argyle Place, Millers Point NSW 2000.

Description

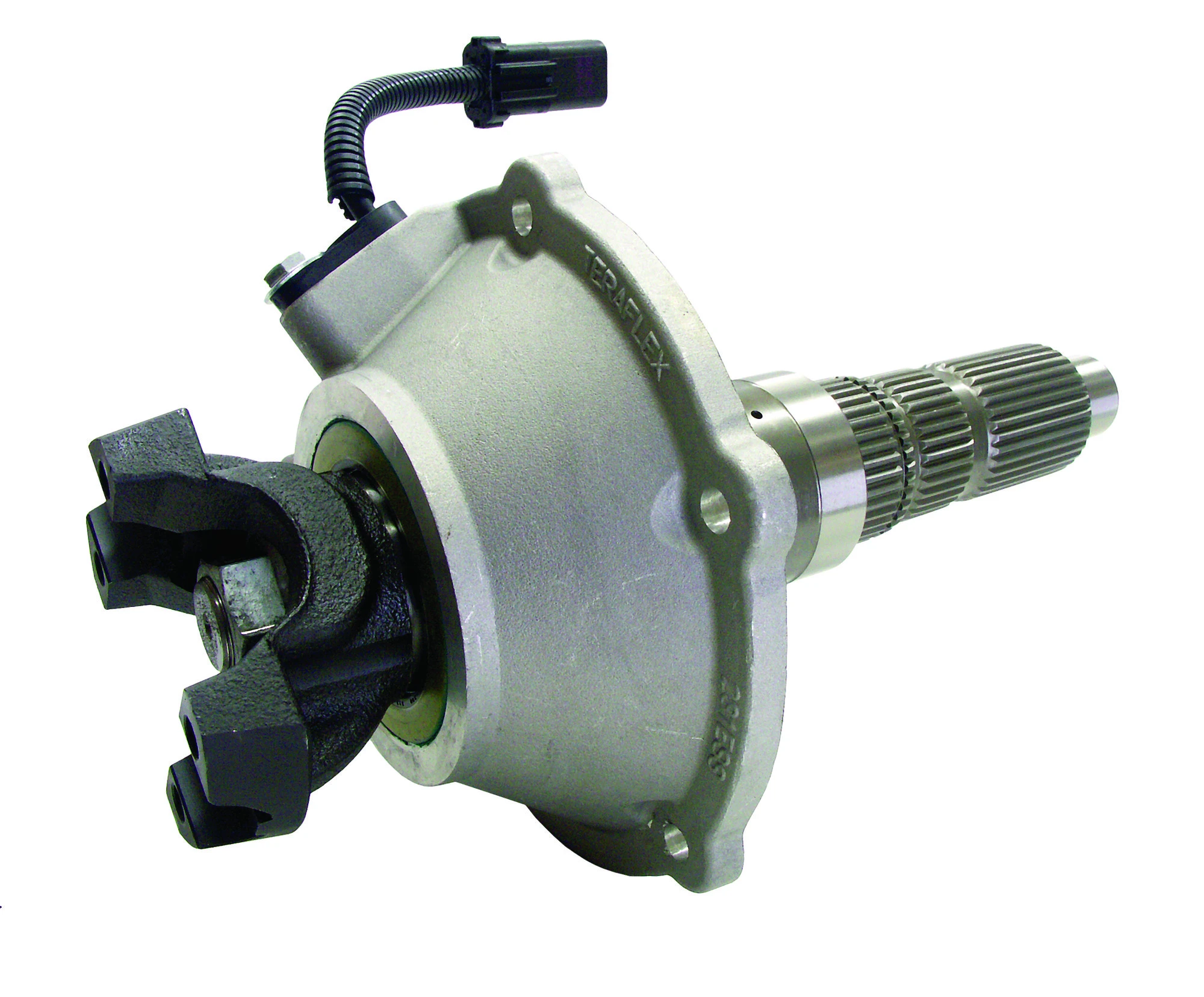

The Extreme Short Shaft kit is what short wheelbase Wrangler owners have been dreaming of for decades. The Extreme kit not only improves on strength, but also increases driveshaft lengths by up to 7" over a stock application. It is over 3" shorter than a standard SYE kit, and 1-1/2" shorter than an ATLAS II.

The Extreme SS kit comes with all necessary components to modify the stock 231 case. Speedometer readings are transferred through a tone ring and electronic sensor. To adjust the calibration a converter box is necessary to make any calibration adjustments.

Specifications

Brand: Teraflex
SKU: 52237-900
Manufacturer part no.: 4444400
Condition: New
Install difficulty: Level 3
Install time: 2-4 hours

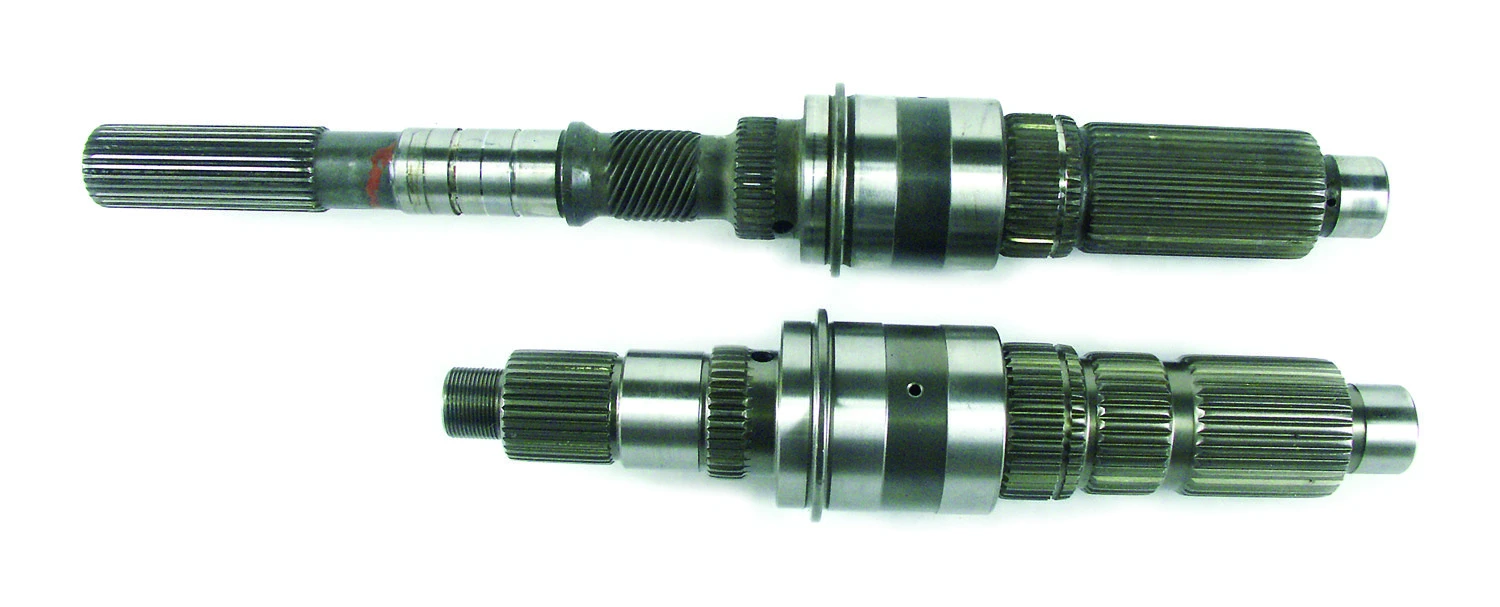

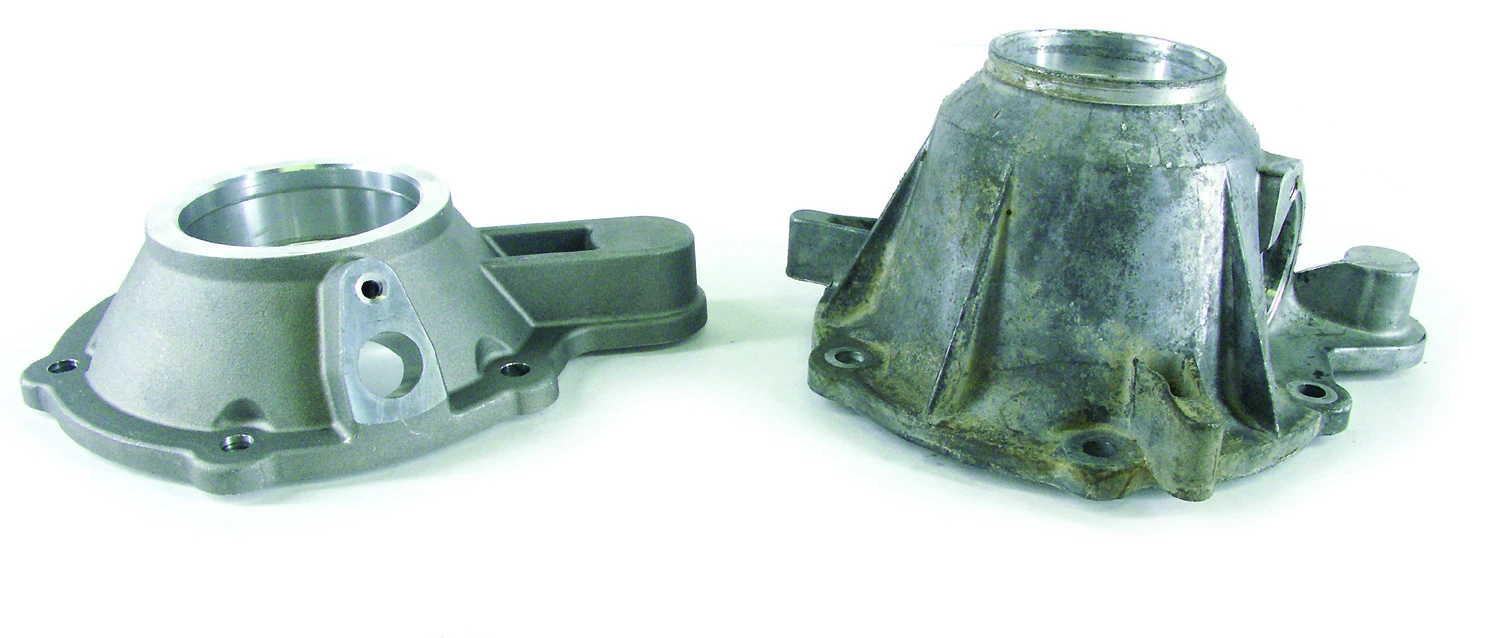

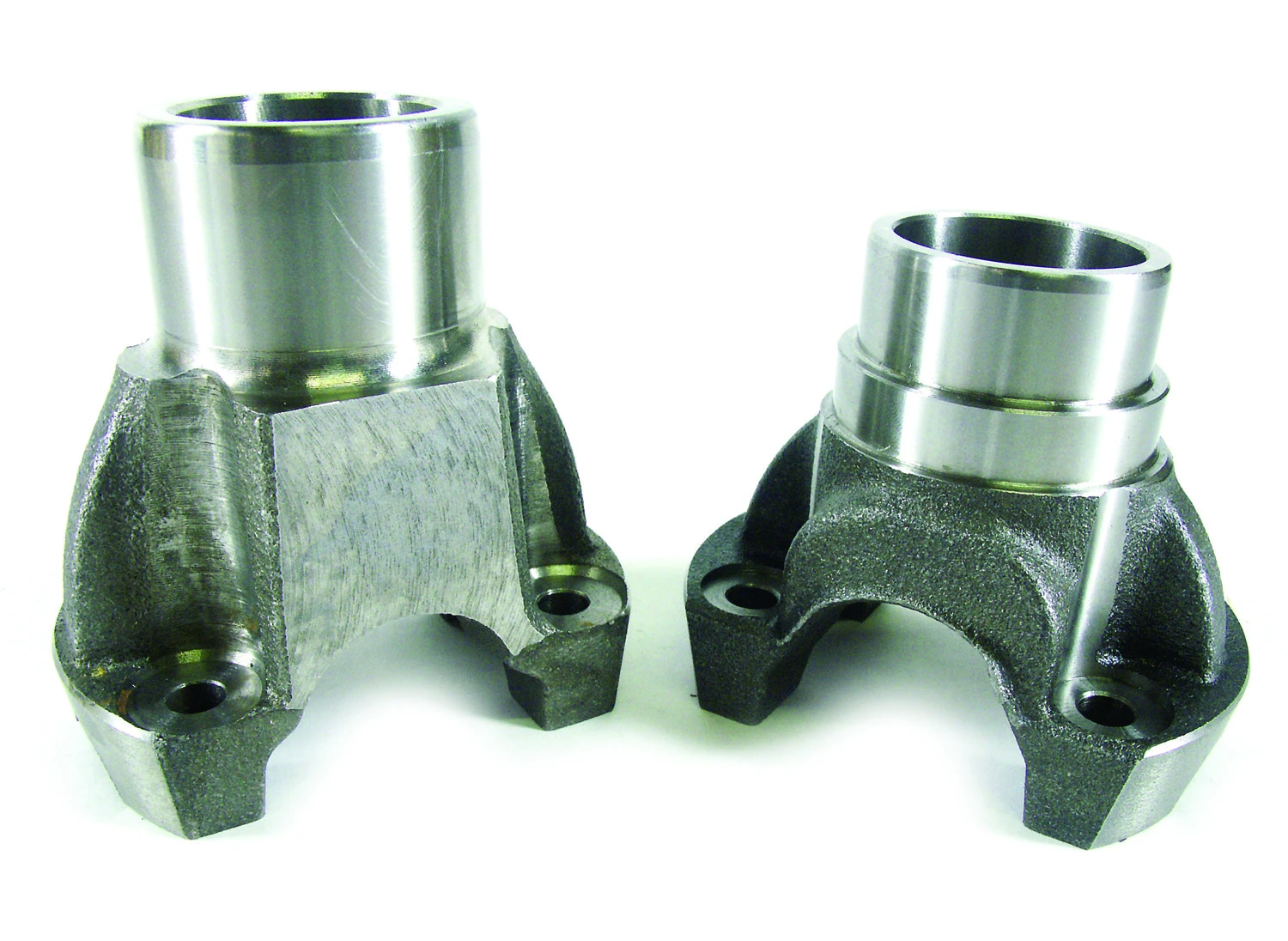

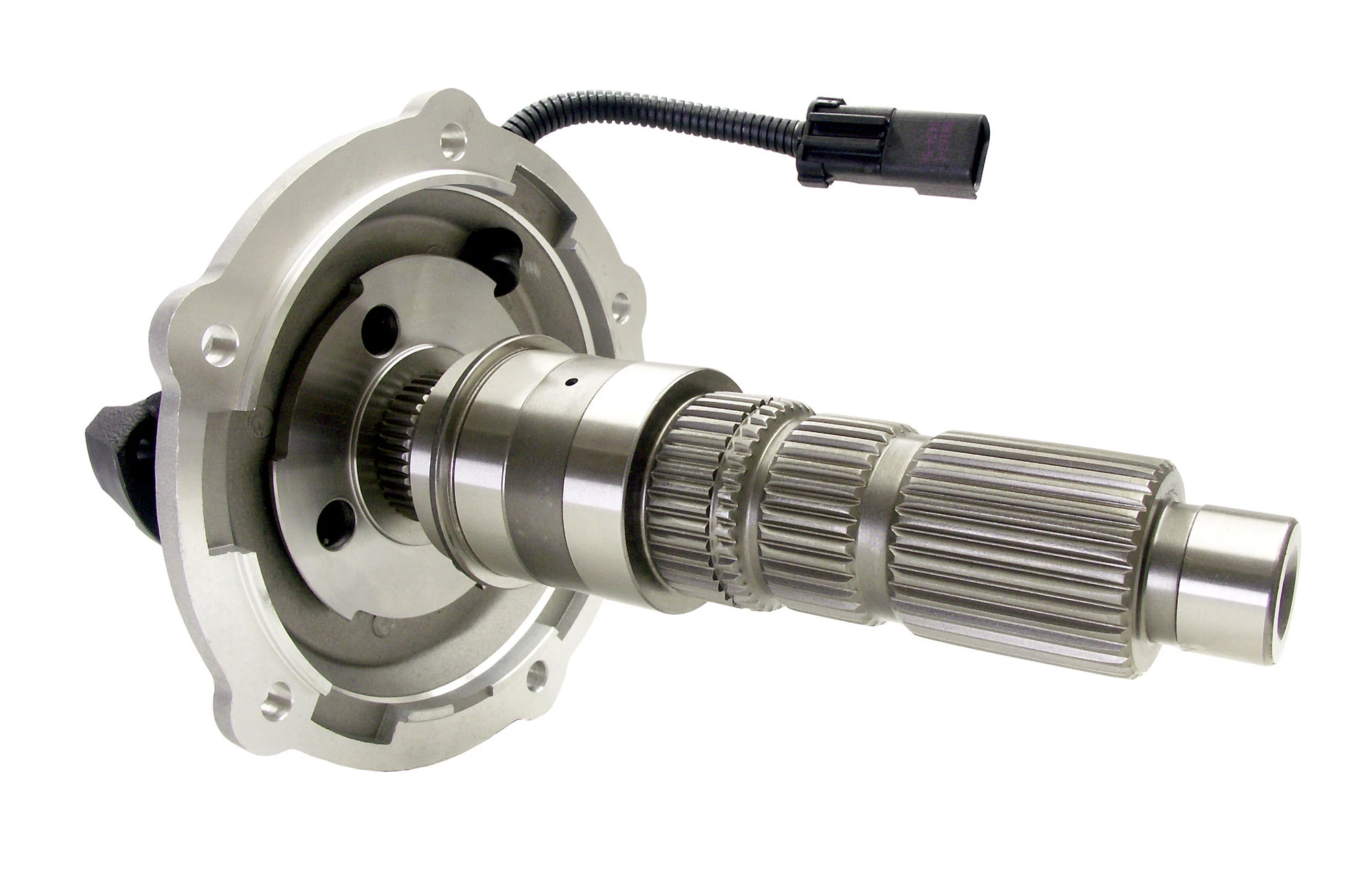

Parts included: Output Shaft Output Housing Speed Sensor Ring Bearing Seal Yoke & Nut Installation Hardware
Shipping weight: 15lb
Dimensions: 14in x 12in x 4in (L x W x H)

Confirmed fitment

This part is listed against the following Jeep platforms and model years.
